Name: Coastal High Hazard (<2021_08)

Display Field: CAT

Type: Feature Layer

Geometry Type: esriGeometryPolygon

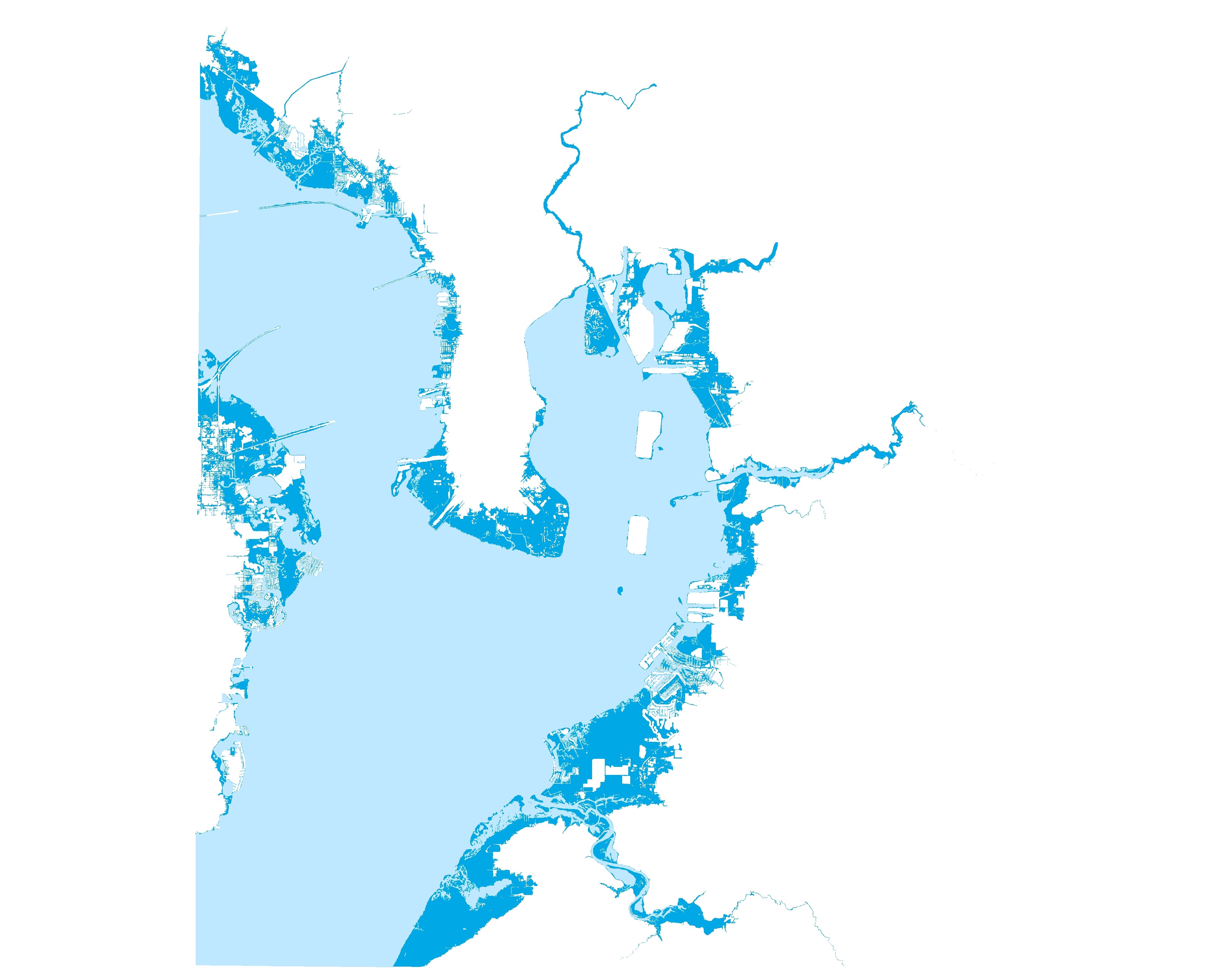

Description: This line shapefile or featureset depicting Surge Zones, was created using a Surge Modeling application created for the Florida Statewide Regional Evacuation Update Study. The data was derived from National Hurricane Center SLOSH model runs on the parabolic basin for this particular region in Florida. The runs create outputs for all different storm simulations from all points of the compass. Each direction has a MEOW (maximum envelope of water) for each category of storm (1-5), and all directions combined result in a MOMs (maximum of maximums) set of data. The MOMs are used in this surge model.The application uses three input parameters or data: elevation (from LIDAR), SLOSH basin results, and contiguous shoreline or sea polygons. The LIDAR data used has been converted to a DEM with 5ft pixel resolution. All processing takes place at the same raster resolution, so the resulting surge polygons (if 5ft) are a spline curve-fitting representation loosely following the outer third of each pixel. The shoreline features are used to process only contiguous surge zones for each category storm, so there are no lower surge "islands" in the interior of the surge output features.

Copyright Text:

Default Visibility: false

MaxRecordCount: 1000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0

Max Scale: 0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: false

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: 446191.2513224967
YMin: 1204161.2957847416
XMax: 579764.8421144113
YMax: 1362974.86693649
Spatial Reference: 102659  (2237)

Drawing Info:

Renderer:
Simple Renderer:
Symbol:
Style: esriSFSBackwardDiagonal
Color: [168, 0, 0, 255]
Outline:
Style: esriSLSSolid
Color: [168, 0, 0, 255]
Width: 0
Label: N/A
Description: N/A
Transparency: 0
Labeling Info:

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID )
• CAT ( type: esriFieldTypeString, alias: CAT, length: 254 )
• created_da ( type: esriFieldTypeDate, alias: created_da, length: 8 )
• acres ( type: esriFieldTypeDouble, alias: acres )
• ACREAGE ( type: esriFieldTypeDouble, alias: ACREAGE )
• Shape ( type: esriFieldTypeGeometry, alias: Shape )
• Shape_Length ( type: esriFieldTypeDouble, alias: Shape_Length )
• Shape_Area ( type: esriFieldTypeDouble, alias: Shape_Area )

Supported Operations:   Query   Generate Renderer   Return Updates

  Iteminfo   Thumbnail   Metadata
